AMQP

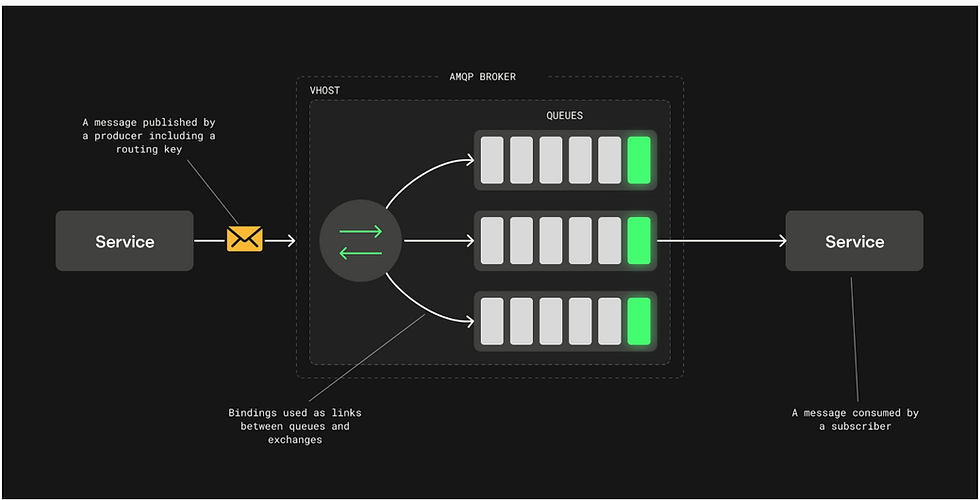

Architectural Style & Patterns: AMQP (Advanced Message Queuing Protocol) is an open standard for enterprise messaging, designed to enable robust, broker-mediated messaging with a rich set of features. It is the protocol behind message brokers like RabbitMQ (which implements AMQP 0-9-1 and now also 1.0) and is used in other enterprise message queue systems (Apache Qpid, Microsoft Azure Service Bus uses AMQP 1.0, etc.). The architecture is broker-centric and supports both point-to-point (queuing) and publish-subscribe messaging patterns. In AMQP, producers send messages to an exchange on the broker, which routes messages to queues based on rules (bindings). Consumers then get messages from queues. This indirection (exchange -> queue -> consumer) allows for flexible routing, including pub-sub (fanout), filtering (topic routing), load balancing (multiple consumers on one queue), etc. AMQP emphasizes reliability and guarantees – it’s transactional, has acknowledgements for message delivery, supports persistent messaging (messages can be stored to disk), and so forth. Essentially, AMQP aims to provide the features of traditional enterprise messaging (like IBM MQ or JMS-based systems) in an open standard way. It is well suited for microservices or enterprise integration where decoupling and reliable asynchronous communication are needed (e.g., task queues, event-driven workflows, payment processing pipelines). Many event-driven architectures in enterprises use AMQP-based brokers to ensure that critical events (like orders, transactions, notifications) are not lost and can be processed by multiple downstream systems. While MQTT is lightweight and simple, AMQP is heavier but more feature-rich and robust, making it suitable for complex routing and business processes. It’s widely used: RabbitMQ (one of the most popular AMQP brokers) is used by thousands of companies (over 13,000 companies as of 2025, according to one market analysis) and in many industries. Notably, the financial services sector had a strong hand in AMQP’s creation – major banks were part of its working group (JPMorgan, Goldman Sachs, etc.) – which underlines its design for business-critical messaging.

Strengths and Use Cases: AMQP and AMQP-based brokers bring a lot of enterprise messaging capabilities to the table:

• Reliable Delivery and Acknowledgments - AMQP was built for reliable, guaranteed delivery of messages. Senders can get confirmations that a message was received by the broker, and consumers send acknowledgments when they successfully process a message. If a consumer dies or rejects a message, the broker can requeue it and deliver to another. This makes AMQP ideal for task queues and mission-critical data where you cannot afford lost messages (e.g., processing a financial trade or an order booking). You can trust that messages won’t vanish silently; the broker ensures they get to a queue and are processed at least once.

• Advanced Routing (Exchanges & Queues) - AMQP’s use of exchanges provides flexible routing logic. For example, a fanout exchange can broadcast a message to multiple queues (pub-sub pattern), a direct exchange routes based on exact routing keys, and a topic exchange routes based on pattern matching (for instance, send all messages about stock.price.nasdaq.* to one queue and stock.price.ftse.* to another). This enables complex event-driven workflows: one event can trigger multiple actions in different services. You can implement filtering, multicast, and priority routing schemes declaratively. This is much harder to do with simpler queues or pub-sub systems without writing custom routing logic.

• Transactional Messaging - AMQP supports transactions, meaning a set of messages can be published atomically, or a consumer can ensure a batch of messages are processed as a unit. This is useful for composite operations where either all steps should succeed or none (though in practice, distributed transactions are tricky, having the option is valuable for certain designs).

• Message Durability and Persistence - Brokers like RabbitMQ can persist messages to disk so that even if the broker restarts, messages are not lost. Queues and exchanges can be durable as well, surviving broker restarts. This is crucial for systems that can’t lose data (unlike, say, a WebSocket which if the server goes down, in-flight messages are gone). For example, in an ordering system, if the service crashes after putting an order message on the queue, you want that message waiting when the system comes back up. AMQP provides that durability.

• Acknowledgment-Based Backpressure - Consumers can be configured to prefetch only a certain number of messages and only acknowledge when done, allowing backpressure on the system. If a consumer is slow, the broker won’t overwhelm it with work – messages will queue up. This decouples producer and consumer speeds elegantly. In contrast, event streams like Kafka let consumers pull at their own pace, and AMQP similarly has this controlled consumption model.

• Flexible Patterns (Queues and Pub-Sub) - With AMQP you can implement work queues (single consumer gets a message), competing consumers (multiple consumers on one queue for load balancing), pub-sub (multiple subscribers get copies of messages), request-reply (using correlated queues), etc. It’s a very general messaging backbone. Many microservice design patterns (async processing, event sourcing, saga coordination) can leverage AMQP as the messaging backbone.

• Wide Language and Platform Support - Being an open standard, many languages have client libraries for AMQP (C#, Java, Python, JavaScript, Go, etc.), and multiple broker implementations exist. This means heterogeneous systems can interoperate through AMQP. For example, a .NET system and a Java system can share a RabbitMQ broker to exchange data, without custom adapters. Also, cloud services like Azure Service Bus adopt AMQP, making it possible to integrate on-prem systems with cloud via standardized protocols.

• Enterprise Adoption & Community - Given its roots and age (AMQP 1.0 became an ISO standard in 2014), there is a lot of community knowledge, documentation, and tooling around it. RabbitMQ in particular has a large user base. There are management plugins, monitoring tools (UI dashboards to see queue lengths, etc.), and enterprise support offerings. For large-scale enterprise deployments, having this ecosystem and vendor support is important.

Weaknesses and Limitations: AMQP’s richness can also be a downside depending on context:

• Protocol Complexity and Overhead - AMQP is a fairly complex wire protocol (especially 0-9-1; AMQP 1.0 is somewhat simpler). The messages carry more metadata, and the broker does more work (routing, tracking acknowledgments, possibly persisting to disk). This means AMQP can have higher latency and lower throughput than a raw, simple transport in scenarios where guarantees aren’t needed. If you don’t need the features, the overhead is wasted. For example, an internal high-performance service might find AMQP too slow and instead use gRPC or even UDP-based protocols for speed.

• Operational Burden - Running a broker cluster reliably is non-trivial. You have to manage queue lengths, memory usage, tuning (for example, RabbitMQ will start paging to disk if memory is low, which can drastically slow it). If message rates spike beyond what the broker can handle, you need plans for scaling out (clustering RabbitMQ or sharding by topics). There’s also a risk of brokers becoming a bottleneck – all communication goes through them. Operating an AMQP broker cluster requires expertise (there are many knobs to configure for durability, HA, etc.). This is more overhead than a stateless REST API deployment, for instance.

• Client Complexity - Using AMQP (especially in languages like C or C++) can be more complex than using HTTP libraries. The asynchronous nature and the need to handle reconnections, channel errors, etc., mean developers need to be familiar with messaging concepts. There is also the potential for subtle bugs (e.g., forgetting to ack messages leading to re-delivery, or acking too early). It’s a different paradigm than synchronous request-response, which all developers are familiar with. So there’s a learning curve and potential for misuse (like not understanding how to properly create durable queues or manage consumer load).

• Not Browser Friendly or External Friendly - Like MQTT, AMQP is not something a browser can use directly (except via WebSocket proxies or specific STOMP/web messaging gateways). So it’s not suited for front-end to backend communication in web apps. It’s mostly backend-to-backend or backend-to-IoT. Additionally, exposing AMQP outside your trust boundary (to third parties, for example) is uncommon because it would require them to run an AMQP client and have credentials to your broker – typically instead you’d provide a REST API. Thus, AMQP is usually an internal plumbing choice, not an open API for public consumption.

• Throughput vs. Kafka (Streaming Systems) - In the era of “big data” and event streaming, some use cases outgrow AMQP brokers. For example, if you have to ingest millions of events per second (logs, user clicks, IoT telemetry at planet scale), distributed log systems like Apache Kafka (which can partition data and scale horizontally with sequential disk writes) are more suitable. AMQP brokers are generally designed for moderate message rates with robust handling, rather than firehose streams. They can start to strain under extremely high loads, where something like Kafka would shine. So for very high-scale event ingestion, AMQP may not be the best fit (though it’s possible to scale it, other tools might be more efficient).

• Vendor Implementations Differences - While AMQP is a standard, not all brokers implement it the same way (especially the older 0-9-1 vs 1.0 differences). If you ever switch brokers or use multiple types, there could be subtle differences. Most people stick to one (like RabbitMQ’s dialect). This is a minor point, but worth noting if you interpret “AMQP” broadly.

• Suitability for Request-Response - AMQP can be used for RPC style calls (there’s a common pattern with reply queues), but it’s not as straightforward as using HTTP/gRPC where request/response is the core. With AMQP, doing RPC means correlation IDs and temporary queues or shared reply queues – it works, but if your communication is mostly synchronous calls expecting immediate responses, AMQP might introduce unnecessary complexity and latency.

Typical use cases for AMQP are enterprise integration and microservice communications that need reliable, async messaging. Some examples: a payment processing pipeline where each payment message goes through various steps (fraud check, charging, email receipt) – using a broker ensures none of these steps lose the payment info and can retry if a step fails. Or order processing in e-commerce – an order event is placed on a queue, inventory service and shipping service get their respective messages via exchange routing, and it can be retried if any service is down. Task queues for background jobs (like image processing, email sending) are often implemented with RabbitMQ – web servers publish tasks to a queue, worker processes consume them when able. AMQP is also used in financial trading systems (the original AMQP use case was to replace proprietary MQs in banks): market data feeds, trade execution messages, etc., often go through AMQP for assured delivery. When not to use AMQP: if your system can be simpler – e.g., if a simple REST call with retry logic would do, that’s easier than maintaining a broker. Or if you need ultra-low latency for a request/response (microseconds), the overhead of a broker might be too high. Also, for broad event distribution like analytics pipelines, consider Apache Kafka (which is more throughput-oriented but less about per-message handling guarantees). In summary, AMQP shines when you need a robust messaging backbone with routing and delivery guarantees in a distributed system, essentially acting as the central nervous system of an event-driven architecture.
